Understanding fillet weld symbols is crucial for fabrication professionals, welders, and quality inspectors. Accurate interpretation ensures strong, compliant welds, reduces errors, and maintains project timelines. In this guide, we’ll break down everything you need to know about welding symbols, including their components, practical applications, common mistakes, and how Minhas Mobile Welding ensures precise execution for mobile welding services.
What Is a Fillet Weld Symbol?
A fillet weld symbol is a standardized notation used on engineering drawings to indicate the type, size, and location of a fillet weld. Unlike other welds, fillet welds join two surfaces at approximately a 90-degree angle, forming a triangular cross-section. Properly reading these symbols is vital for fabrication professionals who need to deliver quality welds efficiently.
Fillet weld symbols communicate:
- Type of weld (e.g., fillet, flare, or slot weld)
- Size and dimensions (leg length, throat thickness)
- Location and orientation
- Weld finishing requirements
By mastering these symbols, fabricators can prevent errors, reduce rework, and comply with CSA W59/W47 standards, which govern welding in Canada.
Key Components of a Welding Symbol

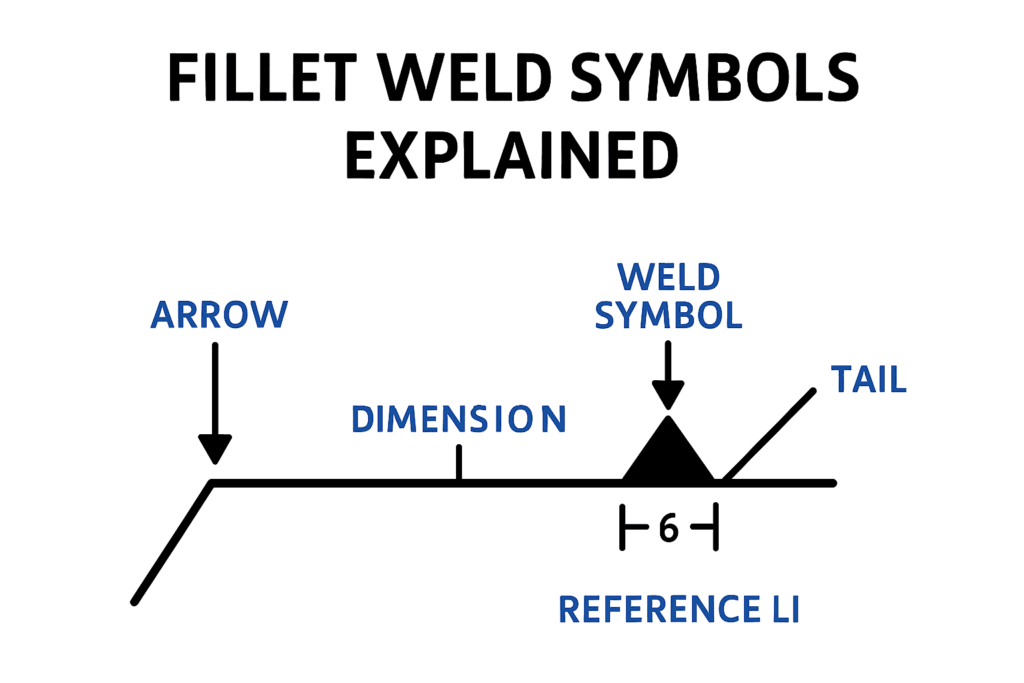

A standard welding symbol consists of several elements:
| Component | Description |
|---|---|
| Reference Line | The horizontal line that forms the backbone of the symbol. All additional information is placed relative to this line. |
| Arrow | Points to the joint where the weld should be applied. |
| Tail | Optional; contains notes, specifications, or special instructions. |
| Weld Symbol | Indicates the type of weld (in this case, a fillet weld symbol is a triangle). |
| Dimensions | Include weld size (leg length), length, pitch, and contour if specified. |
| Supplementary Symbols | May indicate welding process, finish, or other critical details. |
Pro Tip: In most fabrication drawings, the side of the reference line where the symbol is placed shows which side of the joint to weld. Left side = arrow side, right side = other side.
Understanding Fillet Weld Specifications
Fillet welds are simple in shape but complex in detail. Fabricators must consider:
1. Weld Shape and Orientation
- Right-angle fillet welds are most common.
- Flare and bevel fillet welds are used when surfaces are curved or non-perpendicular.
2. Leg Length and Throat
- Leg length is the distance from the joint’s root to the toe of the weld.
- Throat is the shortest distance from the root to the hypotenuse of the triangular weld.
- Example:
6×6 mm fillet weld→ 6 mm leg lengths on both sides.
3. Weld Length and Intermittent Welds
- Symbols may indicate continuous or intermittent welds.
- Intermittent welds are spaced at a specified pitch to save material or reduce heat distortion.
4. Finishing Requirements
- Symbols can specify weld contour, grinding, or hammering if required for strength or aesthetics.
Common Errors Fabricators Make When Reading Weld Symbols
Even experienced welders can misinterpret symbols. Common mistakes include:
- Confusing arrow and other sides → welding on the wrong side of the joint
- Ignoring supplementary symbols → missing contour or finishing requirements
- Misreading dimensions → applying incorrect leg length or throat thickness
- Overlooking intermittent weld spacing → creating welds that are too sparse or too dense
Minhas Mobile Welding addresses these errors by ensuring all weld symbols are double-checked before starting on-site, guaranteeing compliance and structural integrity.
Example Chart: Fillet Weld Symbols
| Symbol | Meaning | Leg Length | Notes |
|---|---|---|---|
| ▲ (triangle below line) | Fillet weld on arrow side | 6 mm | Continuous weld |
| ▲ (triangle above line) | Fillet weld on other side | 6 mm | Continuous weld |
| ▲ 50% (intermittent) | Intermittent fillet weld | 5 mm | 50 mm pitch, arrow side |
| ▲ w/ contour | Fillet weld with convex finish | 8 mm | Requires grinding |
Tip: Using charts like this helps fabricators quickly interpret drawings without guessing.
How Fabrication Professionals Use Weld Symbols for Quality Control
Fillet weld symbols aren’t just technical; they directly impact quality and safety:
- Inspection readiness: Welders can cross-check their work against the drawing.
- Compliance with CSA W59/W47: Canadian standards mandate weld size, quality, and inspection criteria.
- Efficient workflow: Clear symbols reduce time spent clarifying instructions.
- Cost savings: Avoids material waste and rework.
Pro Tip: For mobile welding services, having accurate weld symbols allows technicians to bring the right tools and consumables on-site, saving hours of setup and adjustment.
How Minhas Mobile Welding Ensures Precision and Compliance
At Minhas Mobile Welding, our team of certified welders combines years of experience with a deep understanding of fillet weld symbols. Our mobile welding services bring this expertise directly to your shop or job site. Key advantages include:
- On-site inspection and interpretation: We analyze weld symbols before starting, ensuring every weld meets design specifications.
- CSA-compliant execution: All welds conform to Canadian welding standards, including CSA W59/W47.
- Experienced fabricators: Our welders handle complex projects efficiently, minimizing downtime.
- Custom solutions: Mobile welding eliminates the need to transport large structures, saving time and cost.
By integrating symbol interpretation with on-site expertise, Minhas Mobile Welding ensures every project is executed with precision, efficiency, and reliability.
Practical Tips for Reading and Applying Fillet Weld Symbols
- Always start with the reference line and arrow → identify the exact joint side.
- Check all dimensions → leg length, throat, weld length, and pitch.
- Look for supplementary symbols → contour, finish, and welding process.
- Use charts and diagrams → they save time and reduce mistakes.
- Cross-check with CSA W59/W47 standards → compliance is non-negotiable in fabrication projects.
- Document everything on-site → helps maintain quality and traceability.
